Operation Principle of Air Conditioning

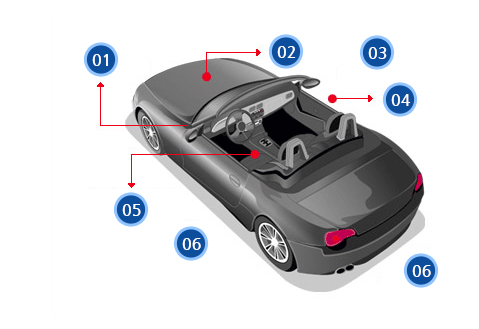

Inside the vehicle, the seat and dashboard get warm by different types of heat from the sun, air, road or engine; the air conditioner is operating when the air in the car gets hot.
01Convective heat
02Engine heat
03Solar heat
04Heat by natural ventilation
05Heat from the human body
06Geothermal heat
Automotive air conditioning system systematically regulates heating, cooling, and dehumidifying the air by repeating the process of compressing, condensing, expanding and evaporating the air conditioner refrigerant to keep the driver and passenger feeling fresh and pleasant.
01EVAPORATOR
02DISCHARGE HOSE
03SUCTION HOSE
04RECIEVER DRIER
05COMPRESSOR
06CONDENSER
The air conditioner system mainly consists of evaporator, compressor, condenser, pipe and hose as a connector, automatic or manual controller and other safety devices.
